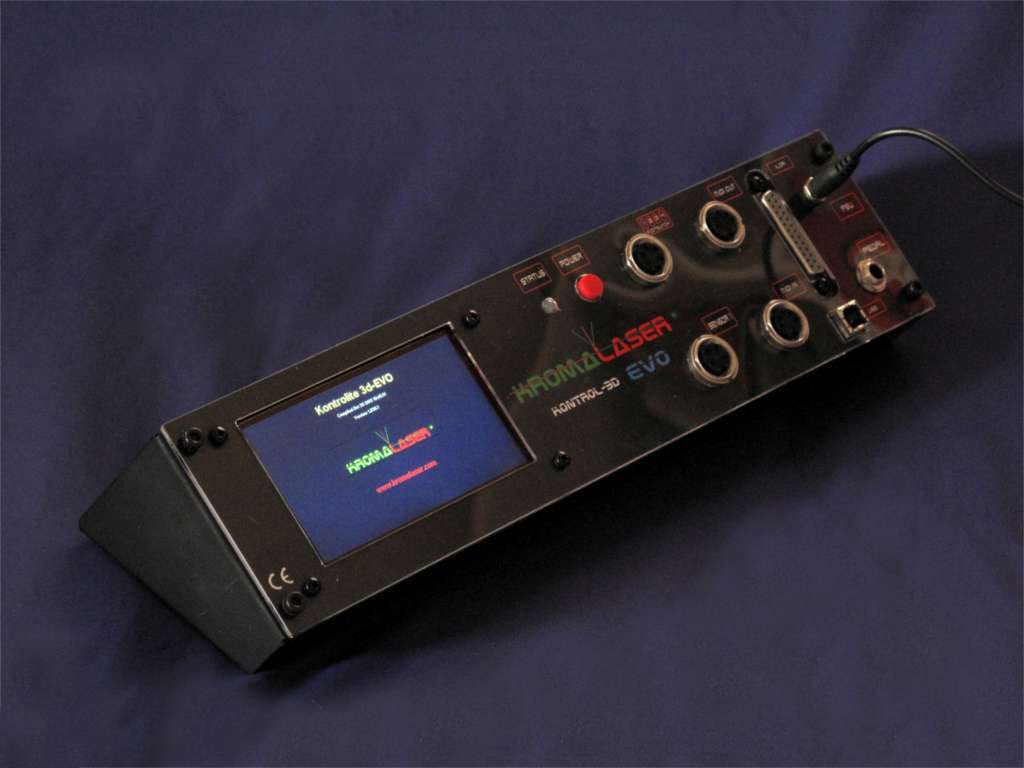

KL 3d-EVO Controller

Ideal for musicians that want to use an external RGB laser ILDA projector. Powerful LCD touch screen for parameter configuration

ILDA Laser Harp generator
(requires an external RGB laser projector)

Touch Screen as your iPhone or iPad to program all the functions

UltraSENSOR™ insensible to ambient light

Multiple Octaves on vertical plane selected by the position of the hands (HHMS)

2D and 3D Laser Harp modalities

• Power of each color programmable
• Colors of diatonic/chromatic notes assignable to R, G, B
• Triggered note can change color
• Auto-color mode and Curtain mode for special laser harp effects
• Firmware upgradable using a PC program

Supported projectors:

• ILDA standard
• Analog or Digital modulationw
  (300 mw red laser power and 30kpps scanner recommended)

Delivered with footswitch and PSU

Category:

Musical Instrument

Purposes:

Concerts in Pubs

Theaters

Little Outdoor/Indoor Stages

Medium Outdoor/Indoor Stages

Big Outdoor/Indoor Stages

Little Parties

Wedding Parties

Events

Hand Height Modulation Control(HHMC):

Function activable/assignable with PC software

Default: off

ILDA:

Yes

Number of Laser Beams:

From 5 up to 15

Gain Control:

Digital Automatic

MIDI:

MIDI Out/In and USB Polyphonic

UltraSENSOR:

External

Power Supply:

110…240V 50/60Hz External (Adaptor)

Scan Frequency:

From 5 up to 100Hz

Analog Pedals In:

1 Input, for Jack 6.35mm

Assignable Functions via Touch Screen

Footswitches:

Pedal 1: Octave down

Pedal 2: Octave up

Pedal 3: Shift 1 semitone up

Pedal 4: Shift 1 semitone down

Assignable Functions by Touch Screen

Dimensions

Width: 90cm

Height: 33cm

Depth: 10cm

Weight 5.5Kg with foot switch and sensor
